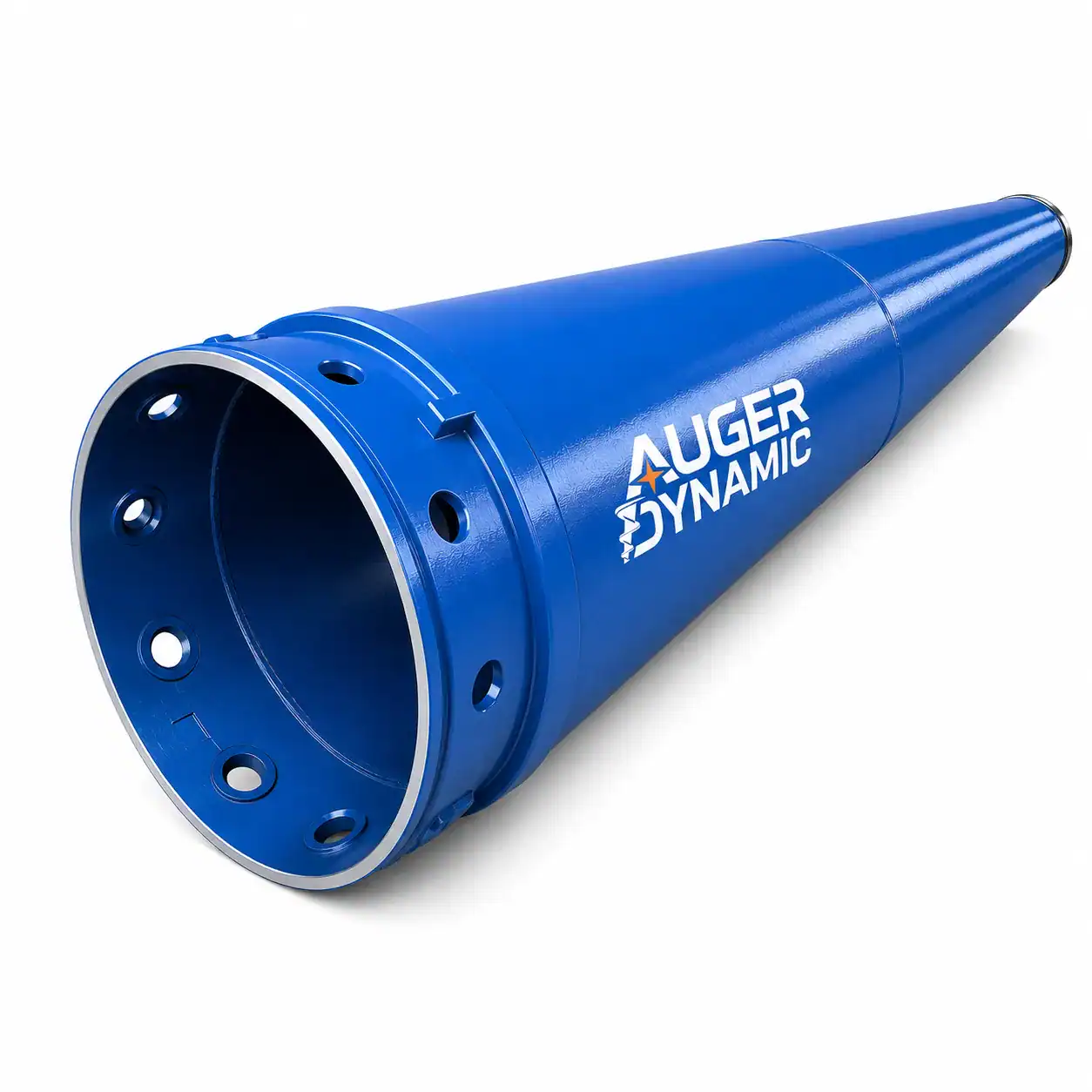

Double Wall Casing

Double Wall Casing

Category:

Description

The Segmental Casing System is designed to provide borehole support and ground stabilization during bored piling and deep foundation construction. Available in both single-wall and double-wall configurations, the casing system helps maintain borehole integrity, prevent collapse, and improve drilling accuracy in challenging ground conditions.
Manufactured from high-strength structural steel with heavy-duty casing joints and wear-resistant cutting shoes, the system is suitable for temporary and permanent casing applications. Modular casing sections allow easy transportation, assembly, and customization for various pile diameters and project requirements.

Specifications

Product TypeSegmental Casing System
ApplicationBored Pile Construction and Deep Foundation Engineering
Casing TypeSingle-Wall Casing or Double-Wall Casing
Casing Diameter620 mm – 2500 mm (Custom Sizes Available)
Section Length1 m – 6 m (customizeable)
MaterialHigh-Strength Structural Steel
Connection TypeMale/Female Bolted Casing Joint
Cutting SystemTungsten Carbide Cutting Teeth and Casing Shoes
Construction MethodRotary Drilling, Casing Oscillator and Casing Rotator
Ground ConditionsSoft Soil, Sand, Gravel, Cobbles, Weathered Rock and Hard Rock
Wall ThicknessCustomizable According to Diameter and Application
Surface FinishAnti-Corrosion Protective Coating
AccessoriesCasing Shoes, Casing Joints, Casing Drive Adapters and Casing Bolts
CustomizationDiameter, Length, Wall Thickness and Joint Configuration Available

Product Parameters

Diameter D1/D2 (mm)1 m Weight (kg)2 m Weight (kg)3 m Weight (kg)4 m Weight (kg)5 m Weight (kg)6 m Weight (kg)a1 (mm)a2 (mm)t2 (mm)Bolt QTY (nos)
620/5404037391074141117472081128408
750/67049290213111722213125401284010
880/800585106915522036252030051284010
1000/920669122117732328287734291284010
1180/1100844158023163052378745221684012
1200/1120872162023703120387046201684012
1300/1220933174625583372418449961684012
1500/140014332628381750096210739320105012
1800/170017303166460260387474891020105016
2000/1880245042806110794097701160020156016
2200/20802700472067408760107801280020156016
2500/23802960524075209800120801436020156016

Note: Other sizes can be customized.

Features

  • Available in single-wall and double-wall designs.
  • Modular casing sections for easy handling and transportation.
  • Heavy-duty bolted casing joint system.
  • Tungsten carbide cutting teeth for difficult ground conditions.
  • Suitable for temporary and permanent casing applications.
  • Compatible with casing oscillators, rotators, and rotary drilling rigs.
  • High-strength steel construction for long service life.
  • Custom diameters and lengths available.

Benefits

  • Prevents borehole collapse during drilling operations.
  • Improves pile verticality and drilling accuracy.
  • Enhances safety in unstable ground conditions.
  • Suitable for deep foundations and large-diameter piles.
  • Reduces drilling risks in sand, gravel, and rock formations.
  • Durable construction minimizes maintenance requirements.
  • Flexible modular design allows project-specific configurations.
  • Reliable performance in demanding foundation engineering projects.

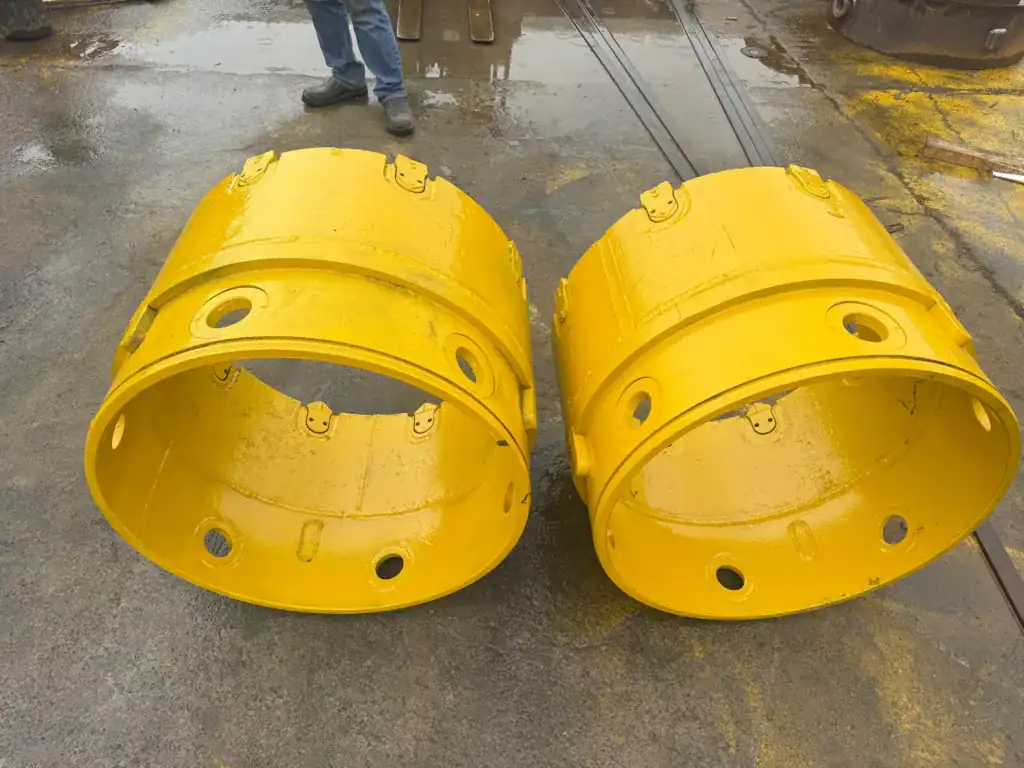

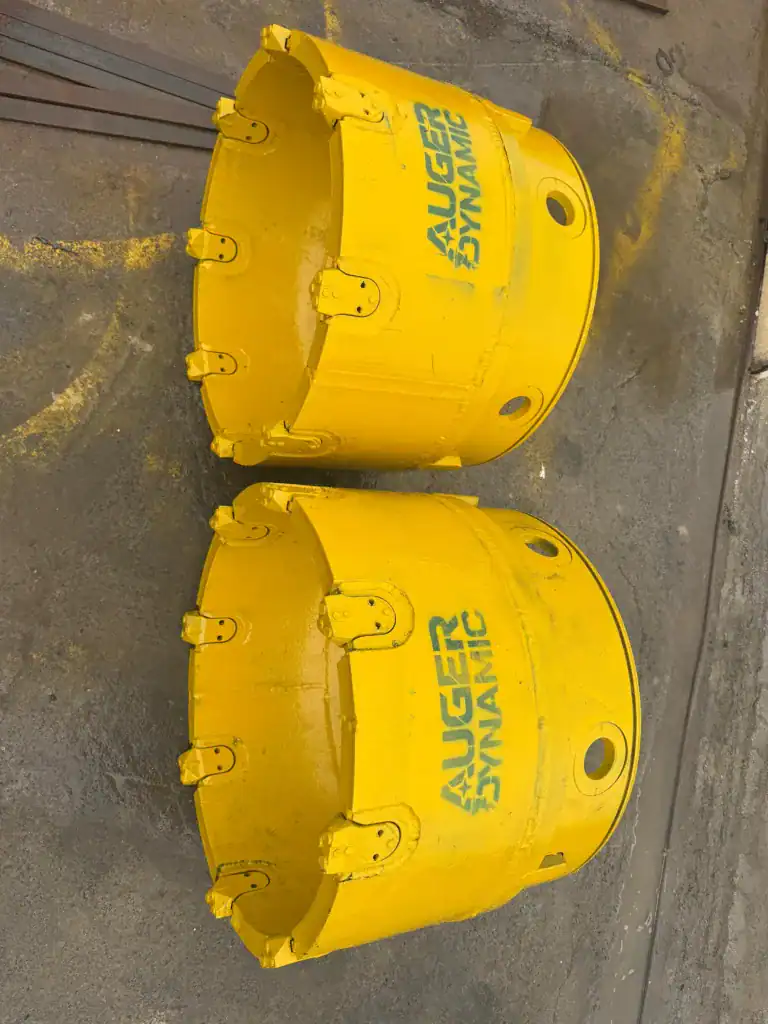

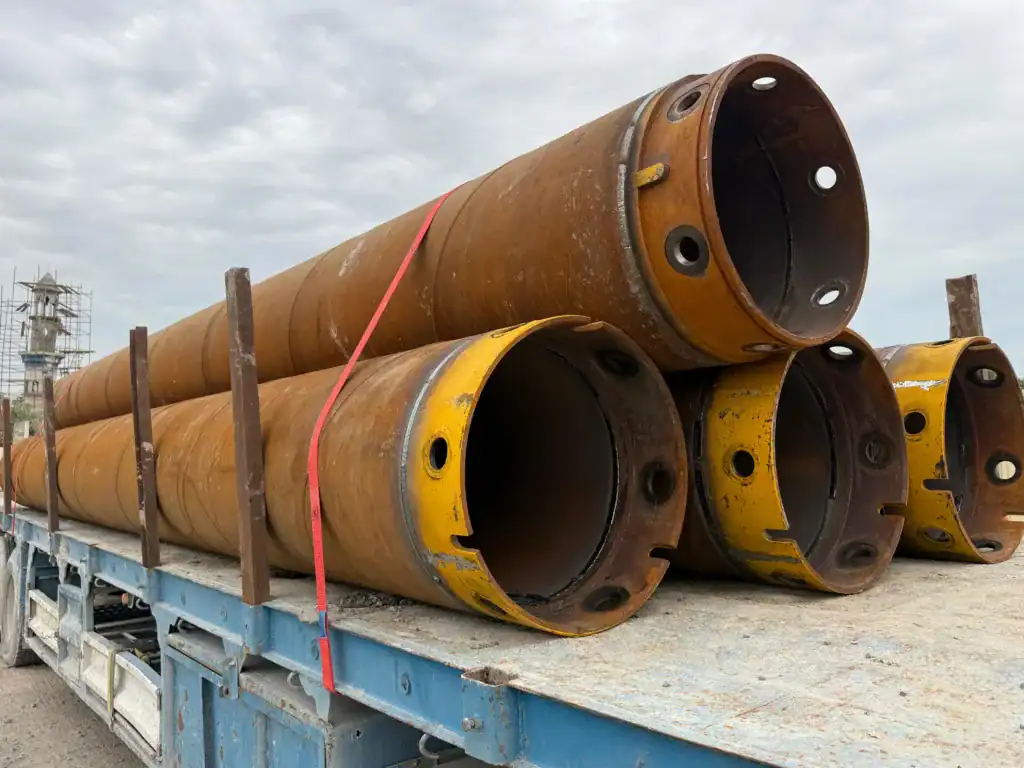

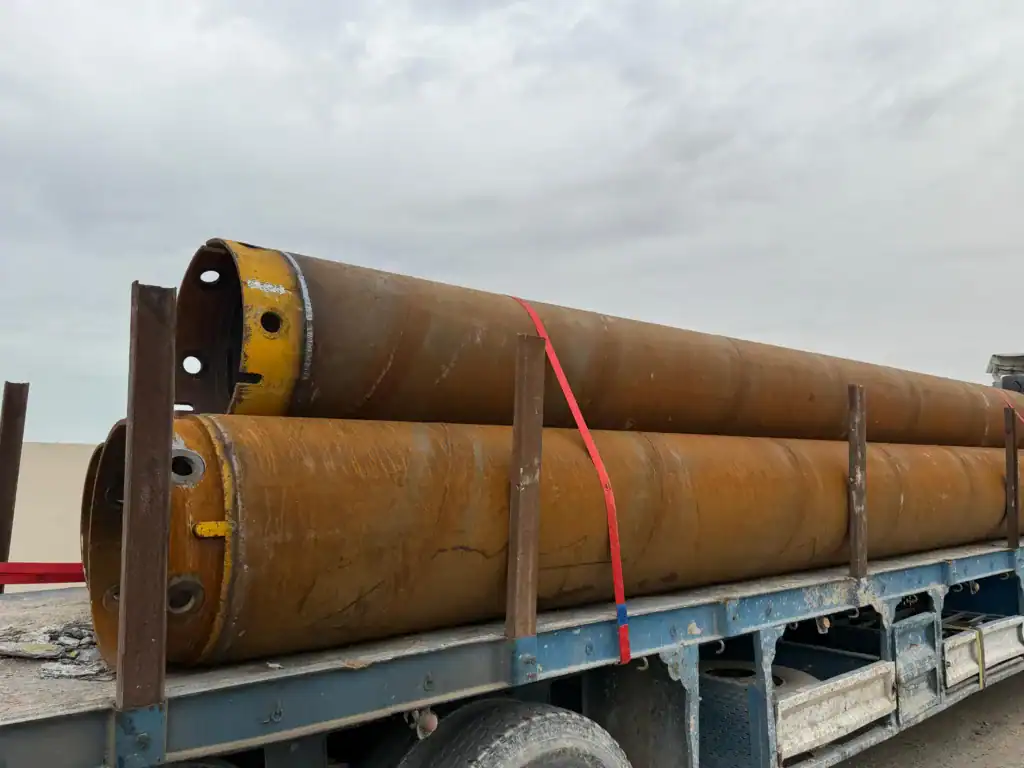

Gallery
