DTH Hammer Drilling Machine

DTH Hammer Drilling Machine

Categories: ,

Description

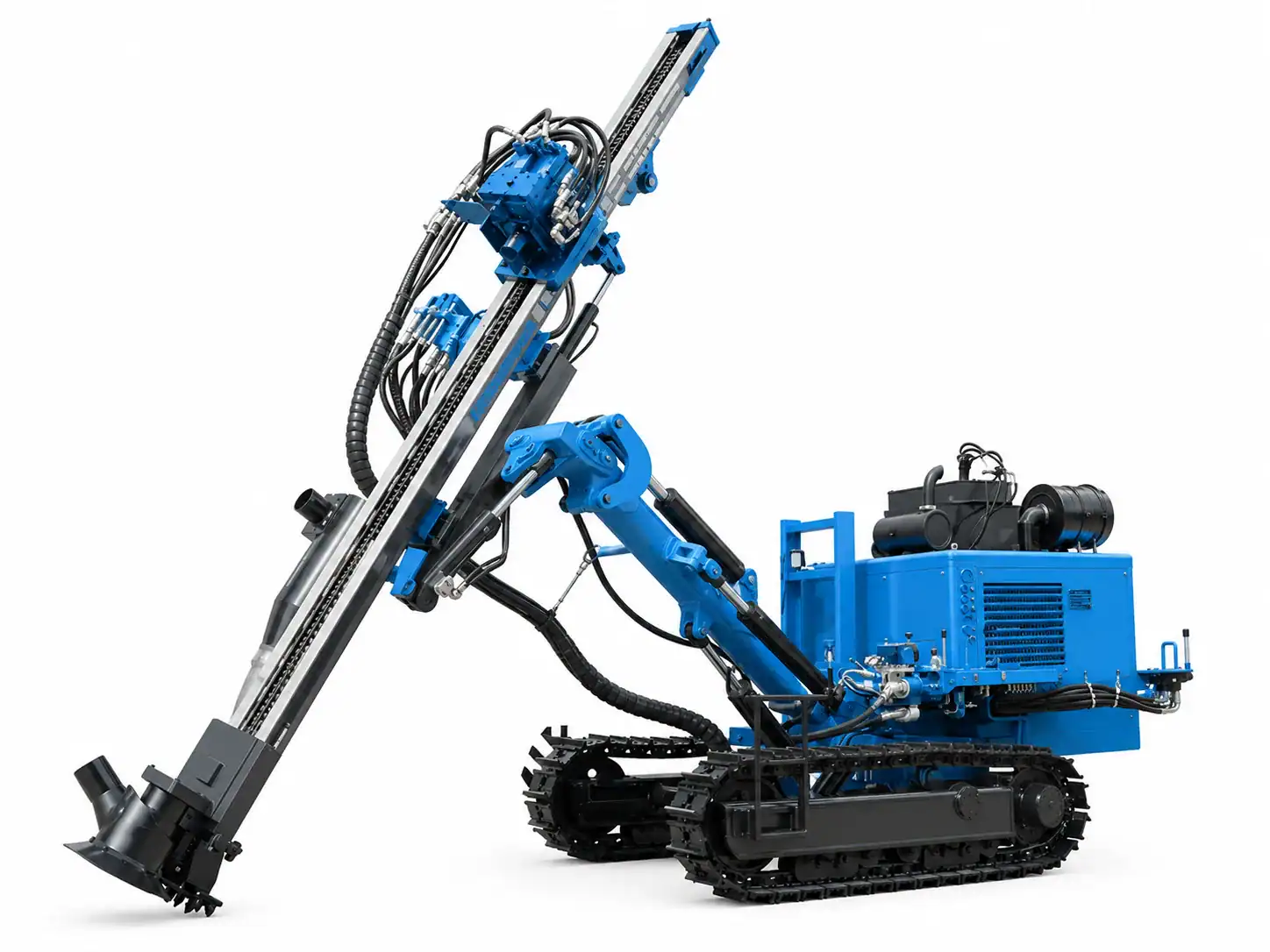

The Top Hammer Surface Drilling Rig is a compact and powerful crawler-mounted drilling machine designed for quarrying, construction, infrastructure, and rock excavation projects. Equipped with an advanced control system, high-performance rock drill, and efficient compressor package, it delivers fast penetration rates, accurate hole positioning, and reliable performance in demanding rock conditions. Its rugged design and excellent mobility make it suitable for remote and challenging job sites.

Specifications

Product TypeTop Hammer Surface Drilling Rig
ApplicationQuarrying, Construction and Rock Excavation
Drilling MethodTop Hammer Drilling
Hole Diameter Range64 mm – 102 mm
Maximum Hole Depth18 m
Engine Power129 kW (173 HP)
Compressor TypeScrew Compressor
Working Pressure10.5 Bar
Air Flow Capacity105 L/sec
Rock Drill Power19.2 kW (25.5 HP)
Feed Length7.5 m
Rod Handling SystemAutomatic Rod Handling
MobilityCrawler Mounted
Operating Voltage24 V
Maximum Operating Weight13,100 kg
Transport Width2,450 mm
ApplicationsQuarrying, Road Construction, Mining and Infrastructure Projects

Features

  • Advanced touchscreen control system.
  • Automatic rod handling system.
  • High-performance hydraulic rock drill.
  • Powerful compressor for efficient drilling.
  • Remote control capability.
  • Excellent stability on rough terrain.
  • High-capacity dust collection system.
  • LED work lighting package available.
  • Hole navigation and drilling automation options available.

Benefits

  • Fast and accurate drilling performance.
  • Increased productivity and reduced operating costs.
  • Reliable operation in hard rock conditions.
  • Improved operator safety and comfort.
  • Reduced fuel consumption through smart engine management.
  • Easy maintenance with accessible service points.
  • Suitable for remote and challenging work environments.
  • High mobility and excellent terrain capability.

Gallery
