Description

The Flat Rock Auger is a heavy-duty drilling tool specifically designed for penetrating hard rock formations, weathered rock, and dense ground conditions. Featuring a flat-bottom cutting structure and high-performance bullet teeth, it delivers maximum cutting efficiency, excellent stability, and consistent drilling performance in demanding foundation and piling applications.
Manufactured from premium wear-resistant steel, the auger is engineered to withstand extreme drilling conditions while maintaining high productivity and long service life. It is suitable for use with a wide range of rotary drilling rigs and can be customized to meet specific project requirements.

Specifications

Product TypeFlat Rock Auger
Drilling Diameter600 mm – 3000 mm (Custom Sizes Available)
ApplicationRotary Drilling & Foundation Piling
Suitable Ground ConditionsHard Rock, Weathered Rock, Fractured Rock, Dense Gravel
Tooth TypeBullet Teeth / Round Shank Chisels
Cutting StructureFlat Bottom Rock Cutting Design
Flight ConfigurationSingle Cut or Double Cut
Kelly Box Options110×110 mm, 130×130 mm, 150×150 mm, 200×200 mm
MaterialHigh-Strength Wear-Resistant Steel
CompatibilityBauer, Soilmec, Liebherr, IMT and Other Rotary Drilling Rigs
CustomizationDiameter, Length, Tooth Configuration and Kelly Box Size Available

Product Parameters

Drilling Dia. (mm)Flight Dia. (mm)Pitch (mm)Flight Length (mm)Teeth Qty (Pcs)Single Cut Weight (kg)Double Cut Weight (kg)
60055060012006481559
70065060012008519630
800750600120010560705
900850600120012614802
1000950600120012675910
110010506001200147411029
120011506001200168091153
130012506001200168871293
140013506001200179731447
1500145060012001810591606
1800175060012002213642155

Features

  • Flat-bottom design for aggressive rock-cutting performance.
  • • Heavy-duty wear-resistant steel construction.
  • • High-quality bullet teeth for maximum penetration efficiency.
  • • Reinforced body structure for demanding drilling conditions.
  • • Optimized spoil removal for improved productivity.
  • • Available in various diameters and cutting configurations.
  • • Compatible with major rotary drilling rig brands.
  • • Replaceable wear parts for reduced maintenance costs.
  • • Custom-built designs available for specific ground conditions.

Benefits

  • Superior performance in hard and abrasive rock formations.
  • • Increased drilling efficiency and faster penetration rates.
  • • Reduced wear and extended tool lifespan.
  • • Improved borehole accuracy and stability.
  • • Lower maintenance and replacement costs.
  • • Reliable operation in challenging foundation projects.
  • • Enhanced productivity and reduced project downtime.
  • • Customizable design to match specific drilling requirements.

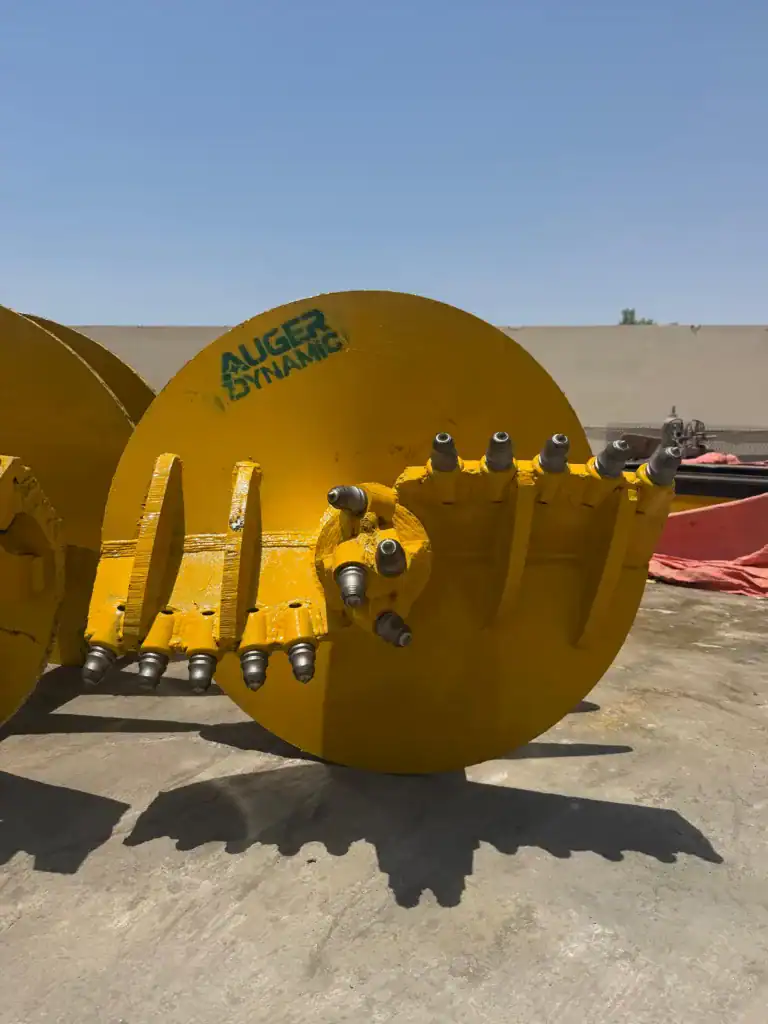

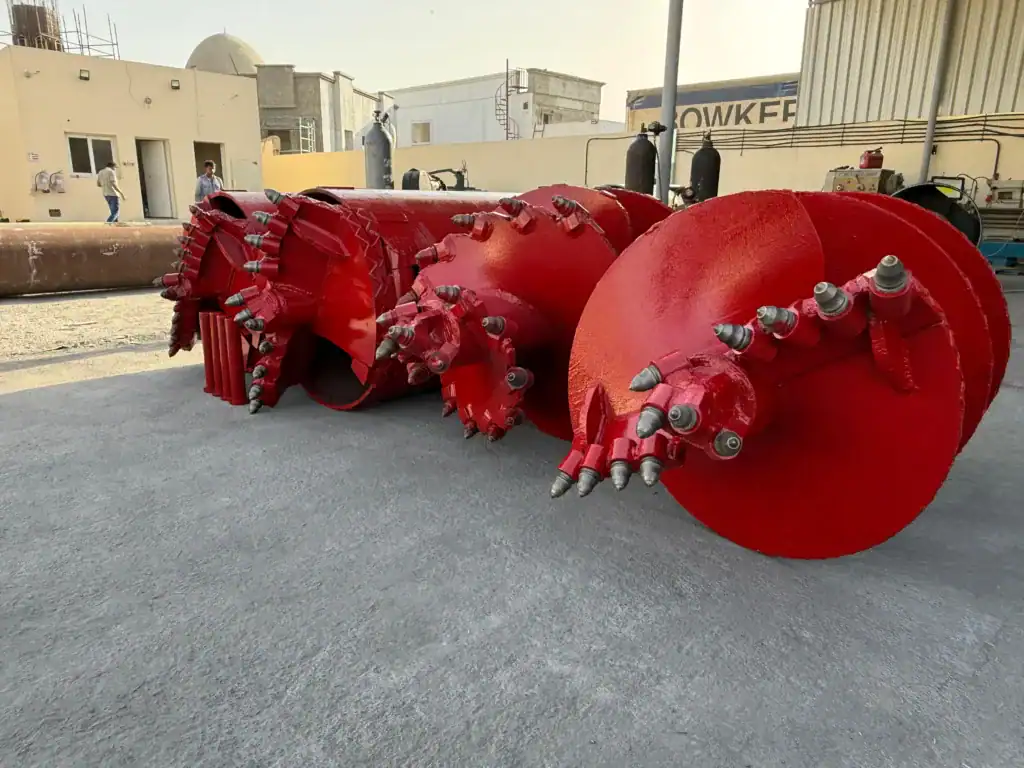

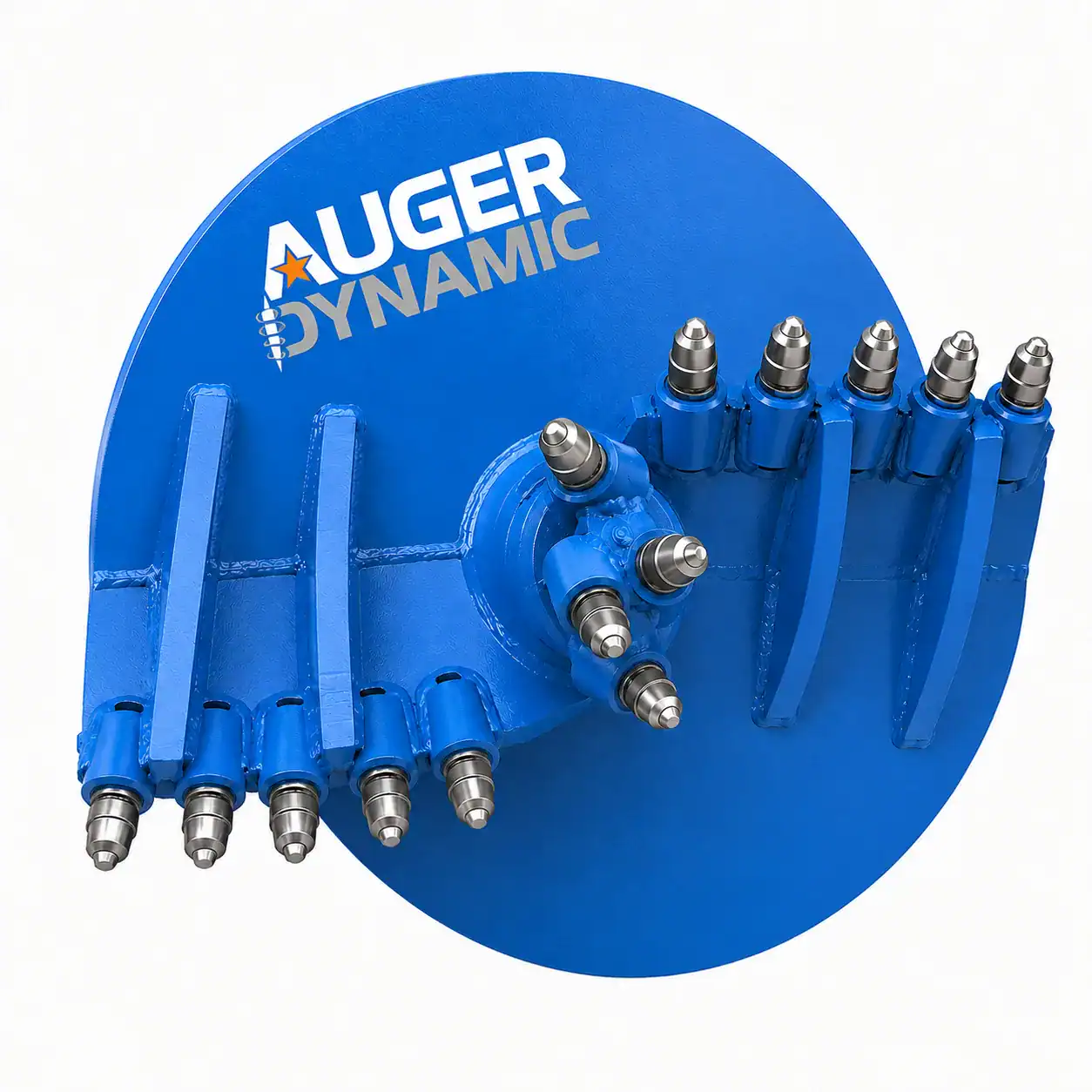

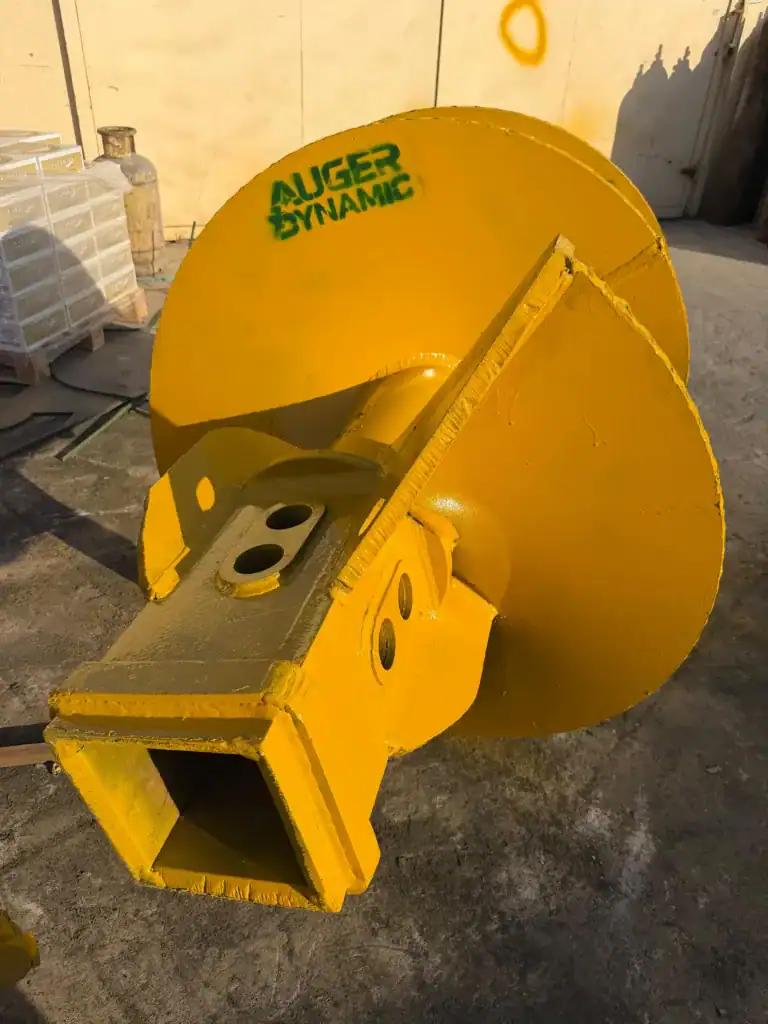

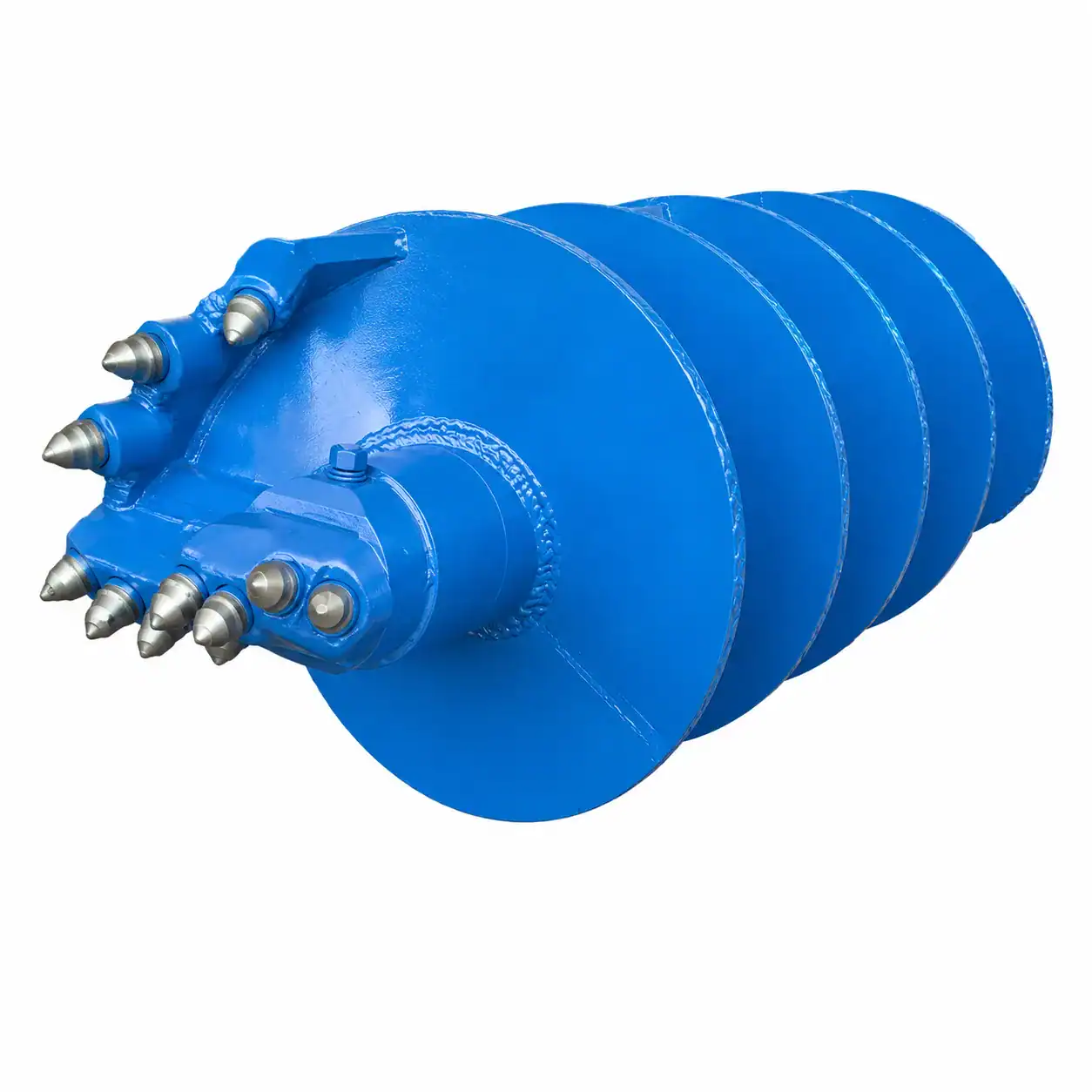

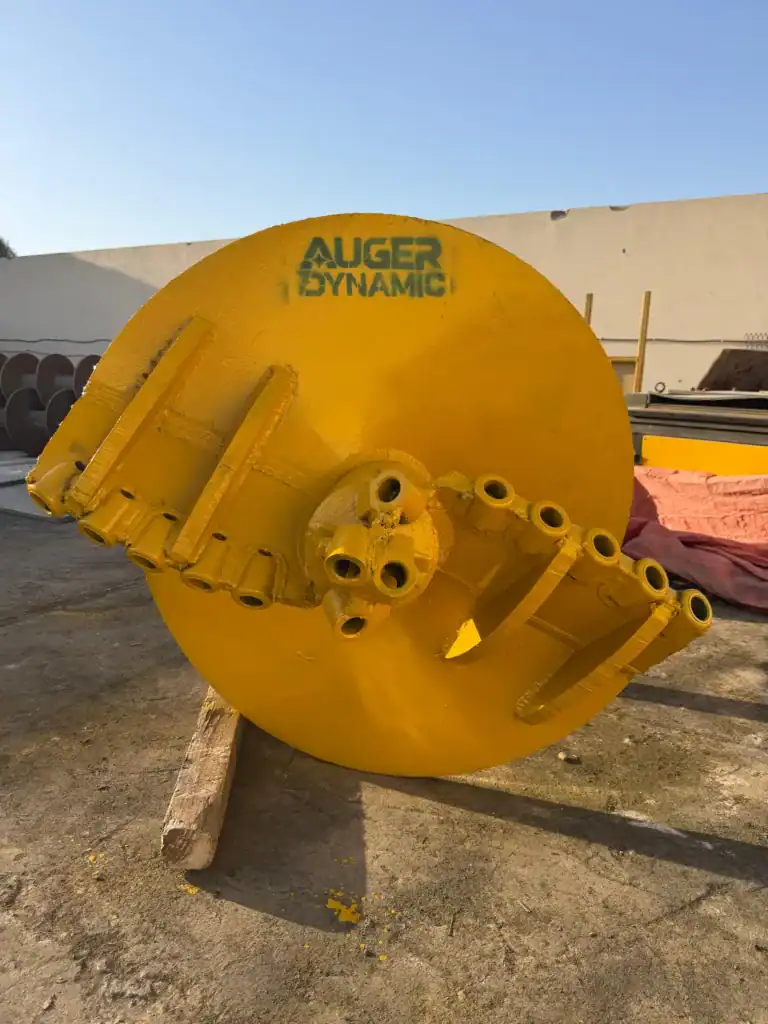

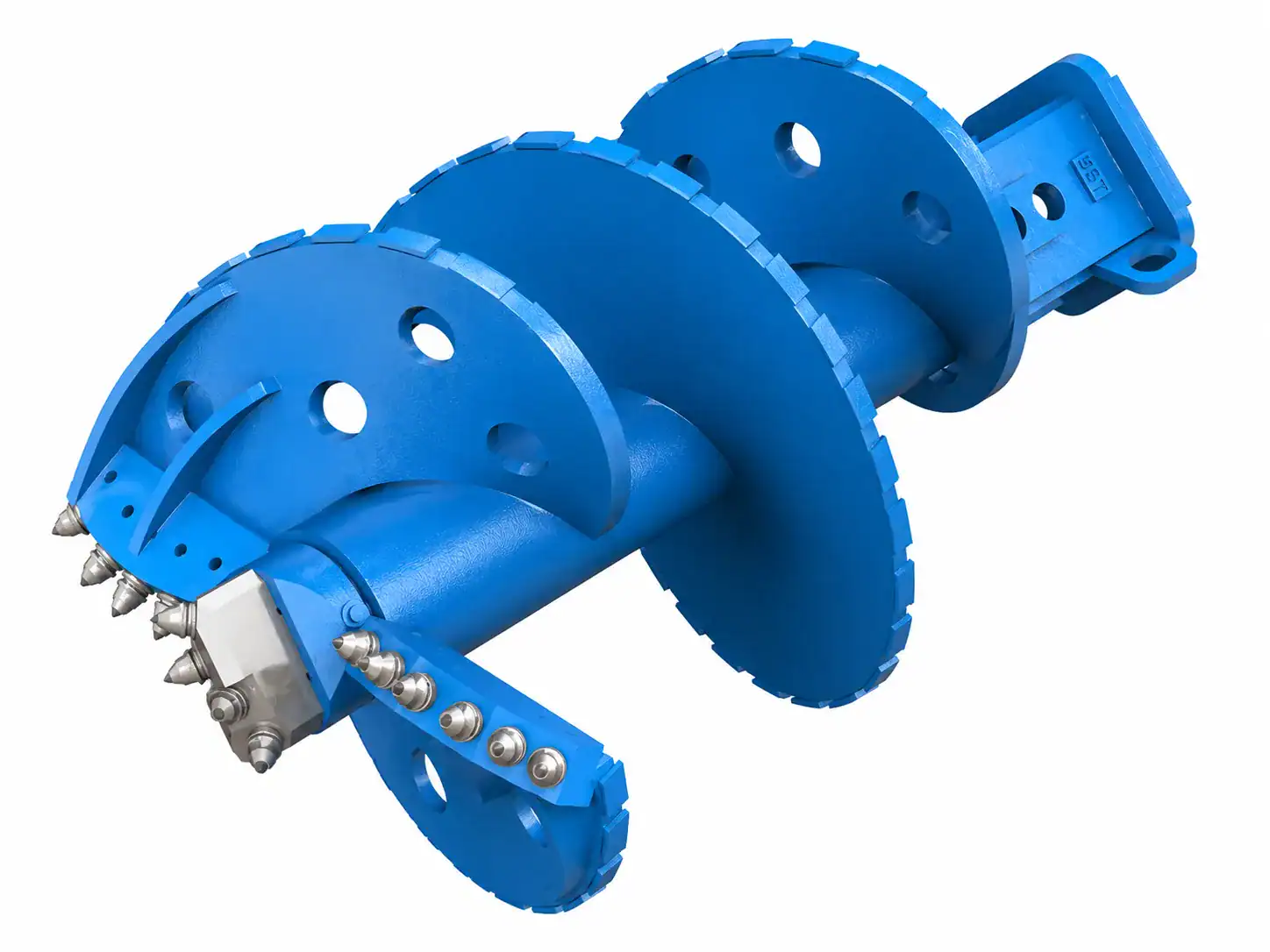

Gallery
