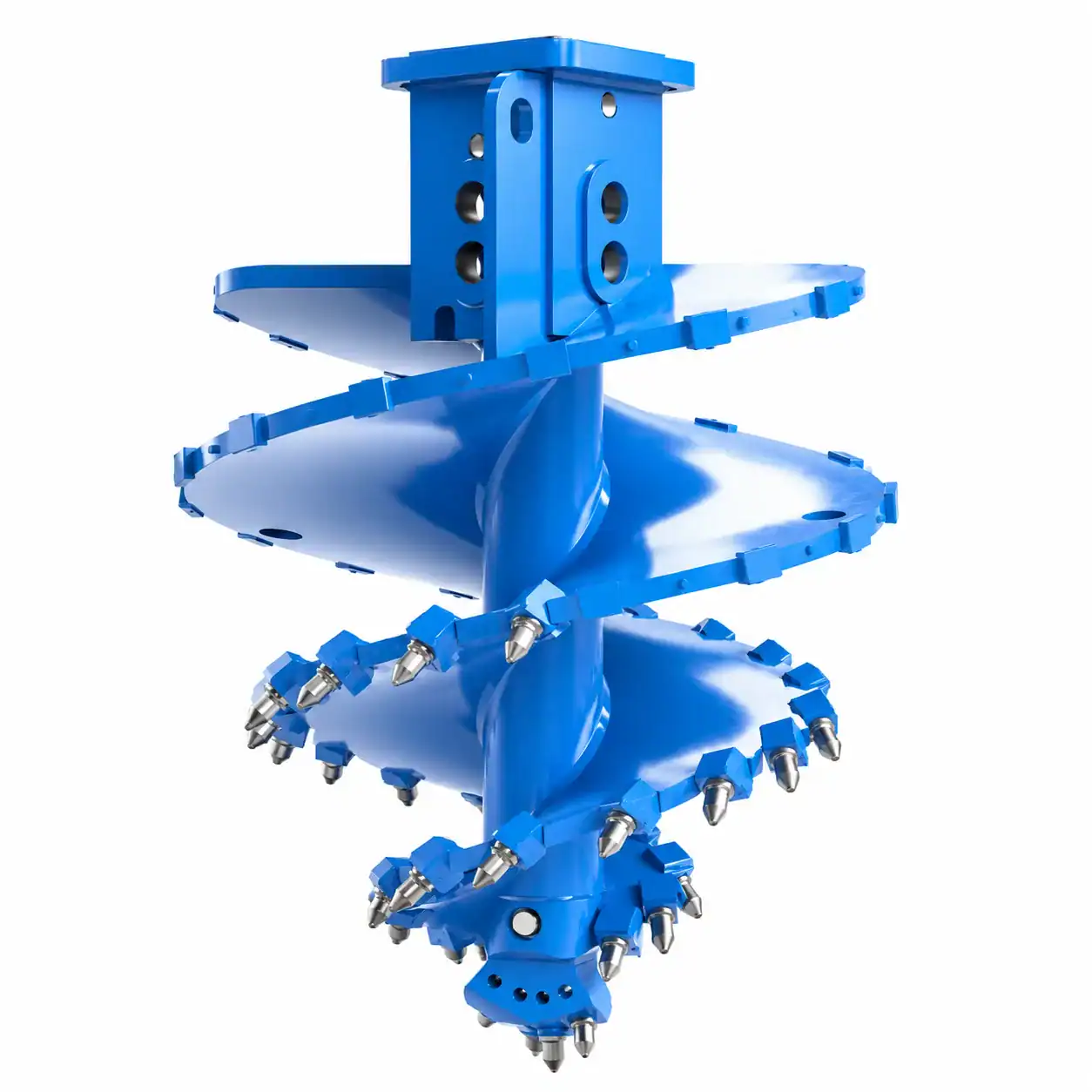

Conical Rock Auger

Conical Rock Auger

Categories: ,

Description

The Conical Rock Auger is a heavy-duty drilling tool engineered for efficient penetration of hard soil formations, weathered rock, fractured rock, and bedrock. Its tapered design enables progressive cutting action, reducing drilling resistance while improving hole accuracy and productivity.
Equipped with high-strength wear-resistant steel and premium bullet teeth, the auger delivers excellent performance in demanding foundation and piling applications. The conical profile allows material to be broken and lifted efficiently, making it suitable for bored piling and deep foundation projects.

Specifications

Product TypeConical Rock Auger
Drilling Diameter600 mm – 2500 mm (Custom Sizes Available)
ApplicationRotary Drilling & Bored Piling
Suitable Ground ConditionsHard Soil, Weathered Rock, Fractured Rock, Bedrock
Tooth TypeBullet Teeth / Round Shank Chisels
Flight ConfigurationSingle Cut or Double Cut
Kelly Box Options110×110 mm, 130×130 mm, 150×150 mm, 200×200 mm
MaterialHigh-Strength Wear-Resistant Steel
Connection TypeKelly Bar Compatible
CustomizationDiameter, Length, Tooth Configuration & Kelly Box Size Available

Product Parameters

Drilling Dia. (mm)Flight Dia. (mm)Pitch (mm)Flight Length (mm)Teeth Qty (Pcs)Single Cut Weight (kg)Double Cut Weight (kg)
600550600120022438537
700650600120022467596
800750600120024512708
900850600120026586775
1000950600120028633871
11001050600120030674958
120011506001200327181047
130012506001200327671145
140013506001200348211253
150014506001200368751367
1800175060012004010811766

Note: Other sizes can be manufactured as per customer demand.

Features

  • Tapered conical design for efficient rock penetration.
  • Heavy-duty wear-resistant steel construction.
  • High-performance bullet teeth for aggressive cutting action.
  • Available in both single-cut and double-cut configurations.
  • Optimized flight geometry for smooth spoil removal.
  • Pilot-guided drilling for improved hole positioning accuracy.
  • Reinforced structure for extended service life in abrasive conditions.
  • Compatible with most rotary drilling rigs and Kelly bars.
  • Custom-built sizes and configurations available upon request.

Benefits

  • Faster drilling performance in hard ground and rock formations.
  • Improved drilling accuracy and reduced hole deviation.
  • Enhanced spoil removal for increased productivity.
  • Lower wear rates and reduced maintenance costs.
  • Longer operational lifespan in demanding applications.
  • Reliable performance in foundation, piling, and infrastructure projects.
  • Reduced downtime through durable construction and replaceable wear components.
  • Flexible customization to match project requirements and drilling equipment.

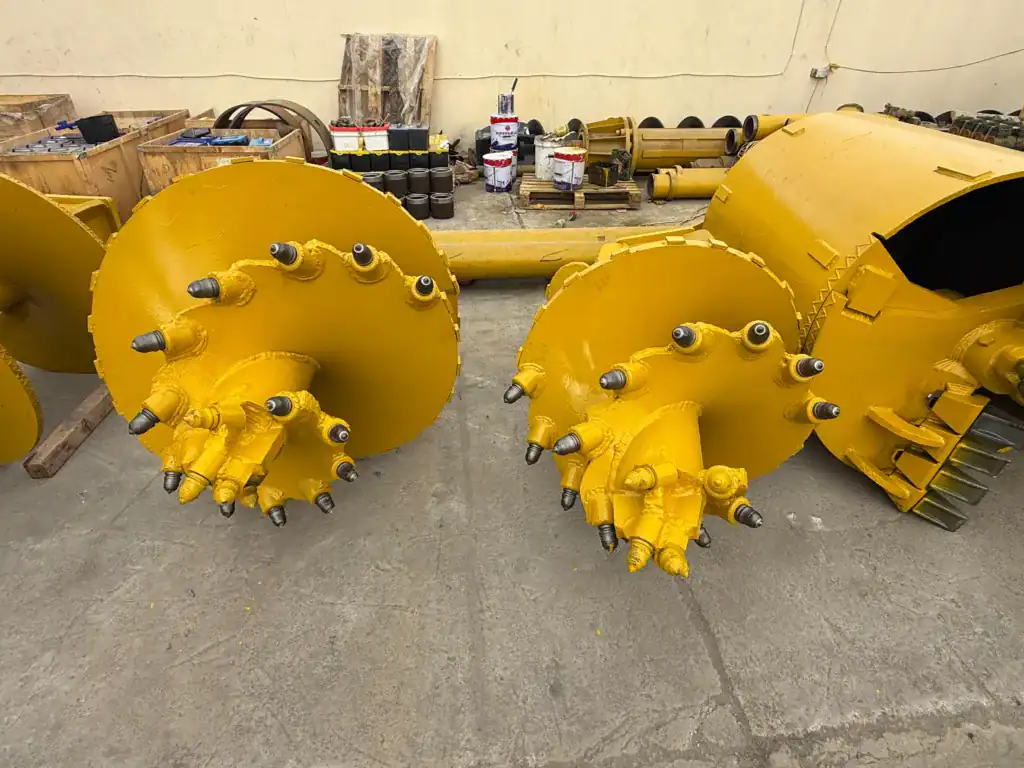

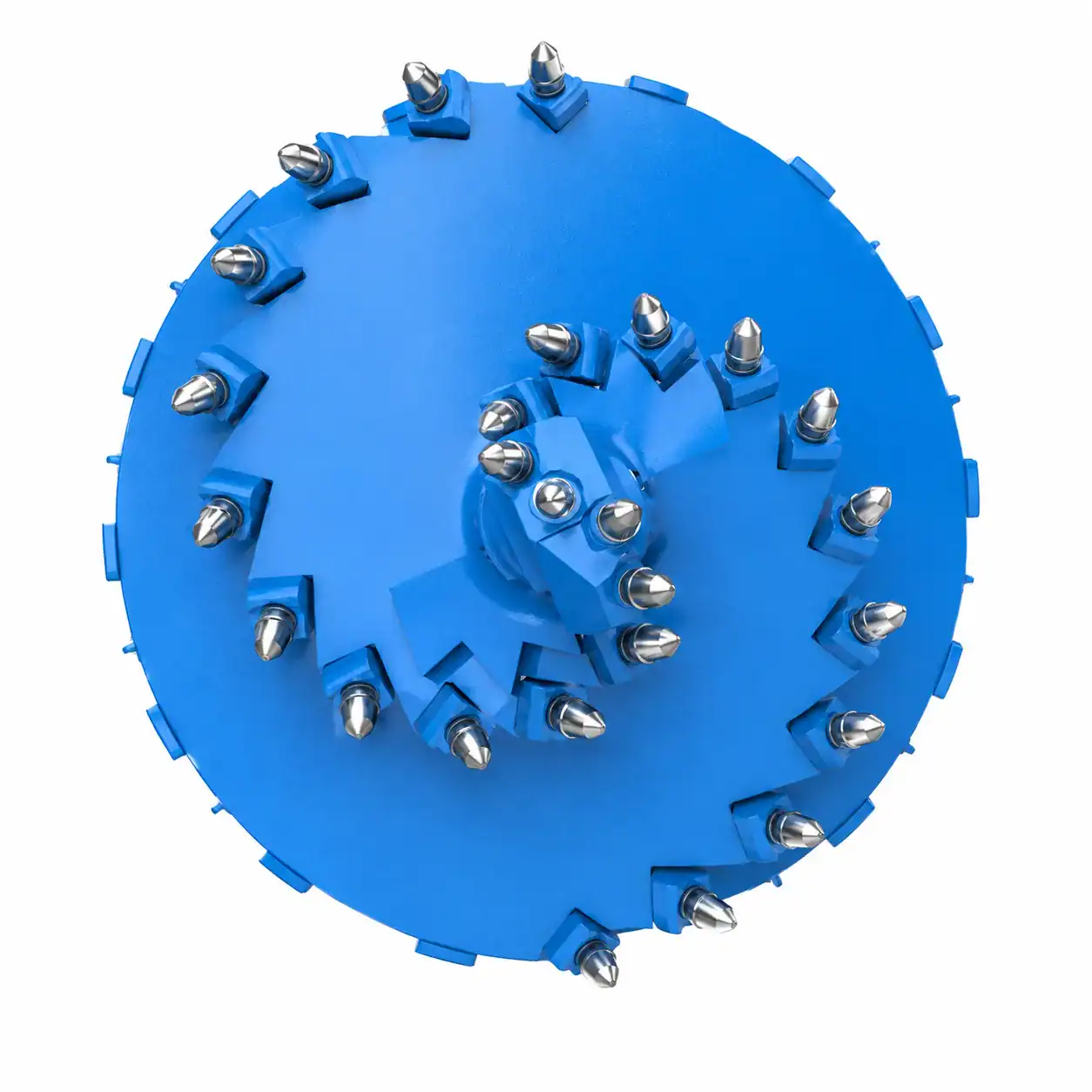

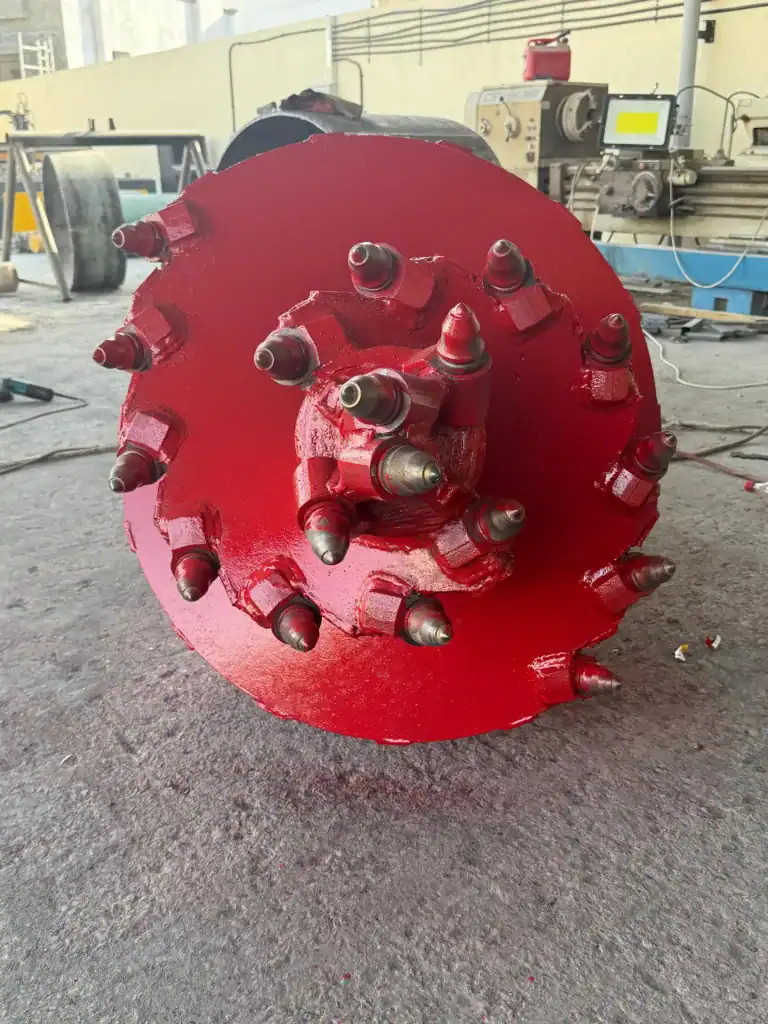

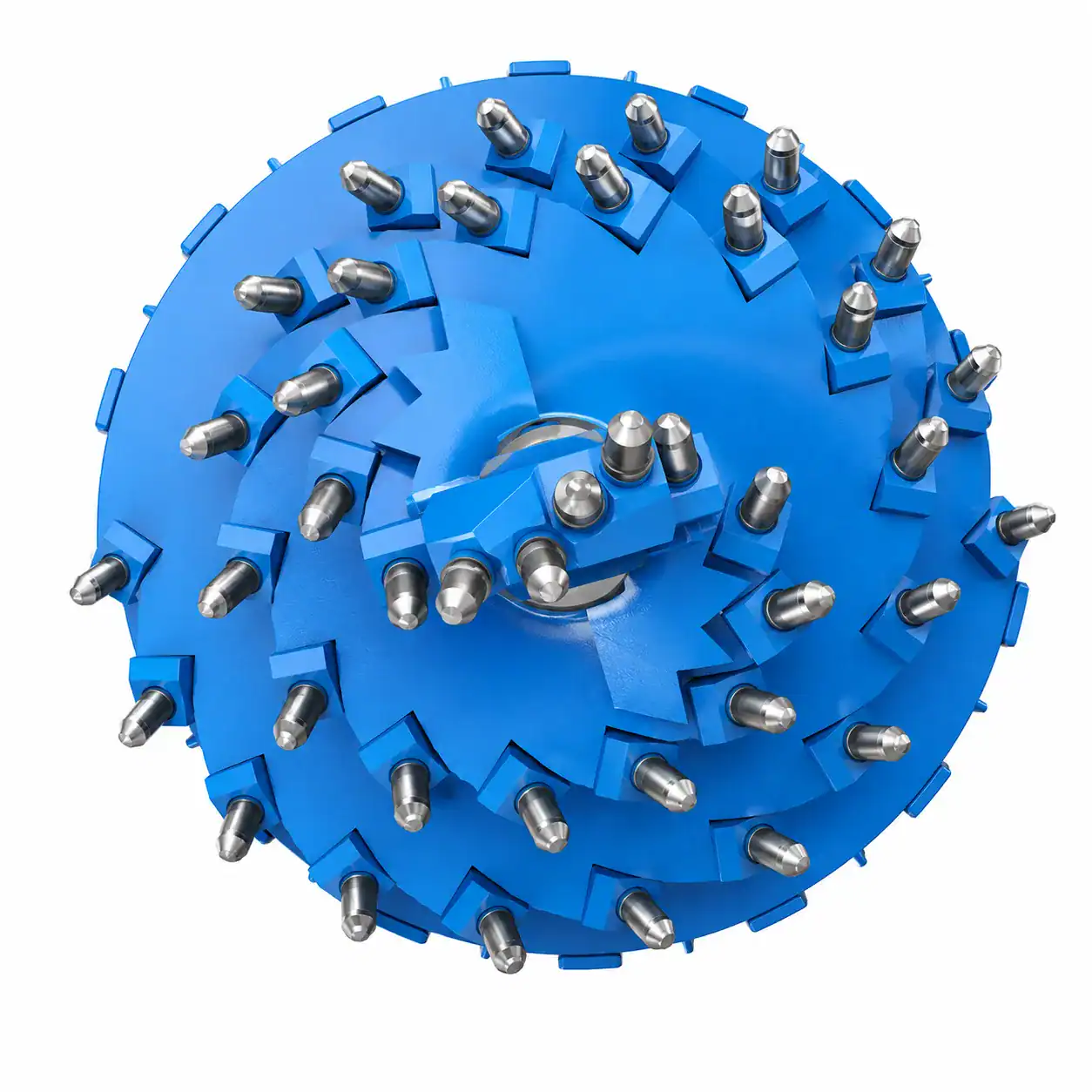

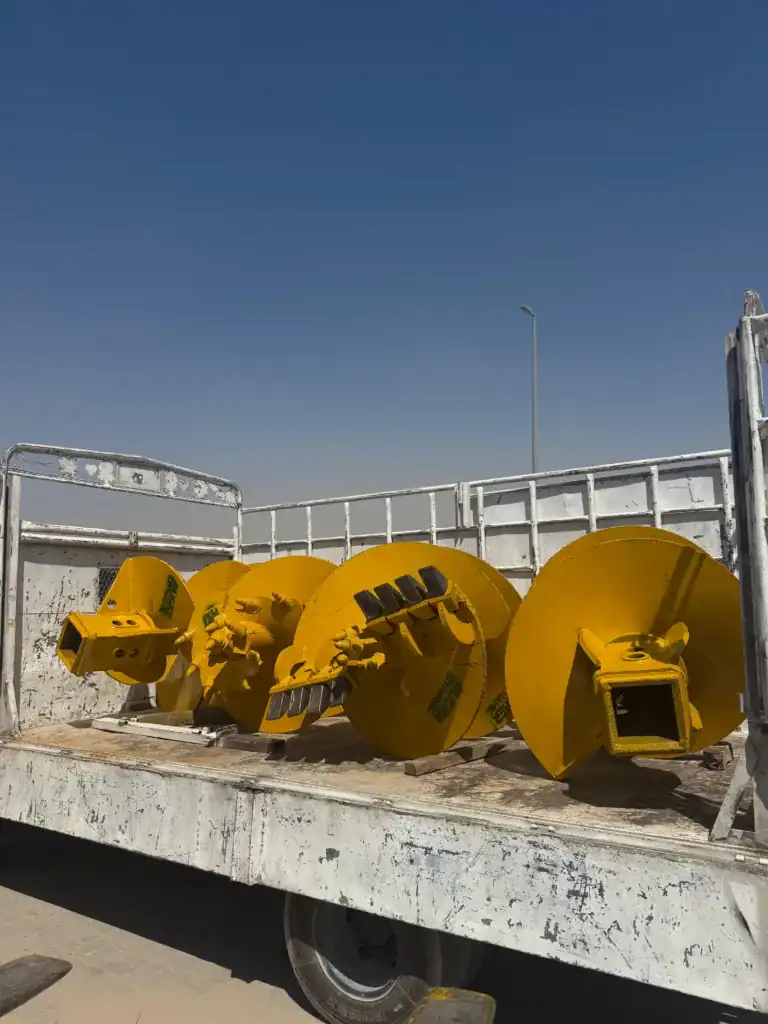

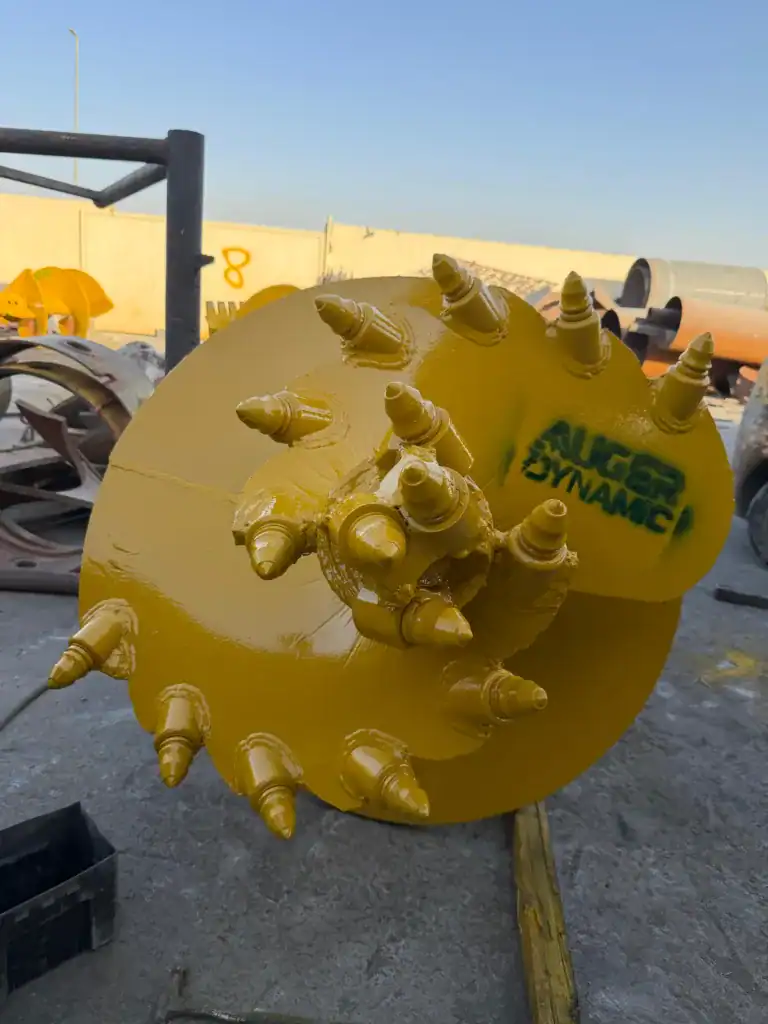

Gallery
